Information

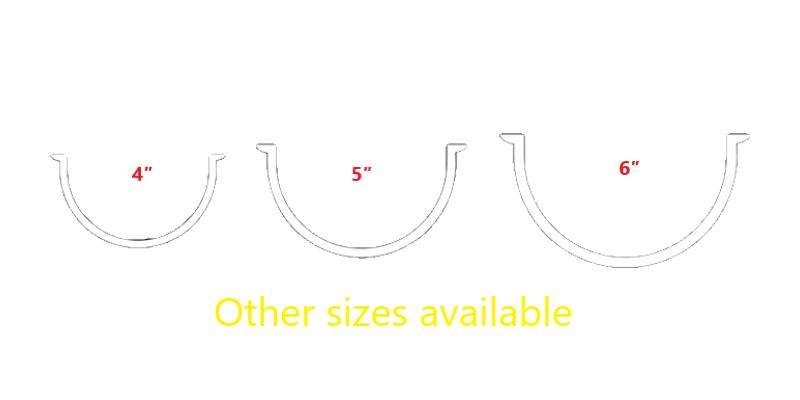

Profile Sizes
Our deep flow aluminium gutters come in two standard lengths of 3m and 1.8m / 6’ and three different profile widths:
- 100mm / 4″
- 125mm / 5″
- 150mm / 6″
We can manufacture almost any size beaded deep flow gutter.

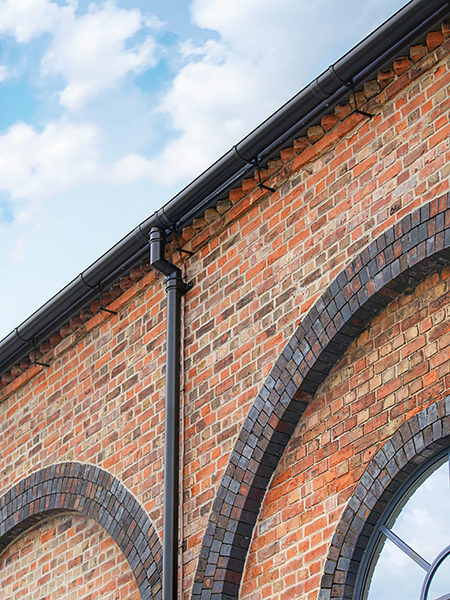

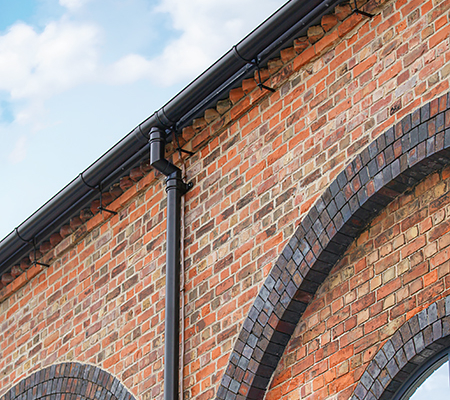

Our Aluminium Beaded Deep Flow Gutters, also known as aluminium deep run gutters, are inspired by 19th Century cast iron guttering. Manufactured to BS9191:2017, they offer the beautiful traditional look of cast iron guttering with all the benefits of aluminium guttering, such as being lightweight, robust and long lasting.
For best practice, installers should ensure that any gutters they fit comply to British Standard BS 9101:2017 Steel and aluminium rainwater systems.
Our standard gutters are generally compliant with BS 9101:2017*.
The standard specifies the requirements for the design and manufacture of metal gutters on industrial, commercial and residential buildings. It reflects the range of materials and manufacturing technologies available and applies to the manufacture of steel and aluminium metal gutter systems.
This British Standard specifies the materials, tolerances, mechanical properties and surface conditions, coatings, laminated surfaces, jointing methods and fixings for rainwater systems, including fittings and accessories for assembly or support.
The British Standard is available from www.shop.bsigroup.com.
*Fitting gutter using rafter or mortar brackets may compromise compliance.
Please Note: Due to our ongoing product development policy, we reserve the right to alter specifications without prior notice.
Our deep flow aluminium gutters come in two standard lengths of 3m and 1.8m / 6’ and three different profile widths:
We can manufacture almost any size beaded deep flow gutter.
A comprehensive range of gutter fixings is available to complement our beaded deep flow guttering. We supply stop ends, running outlets, gutter angles, non-standard and irregular angles, raked angles, apex angles, and high capacity internal angles.
We can also manufacture special gutter fittings to your project requirements, please ask.

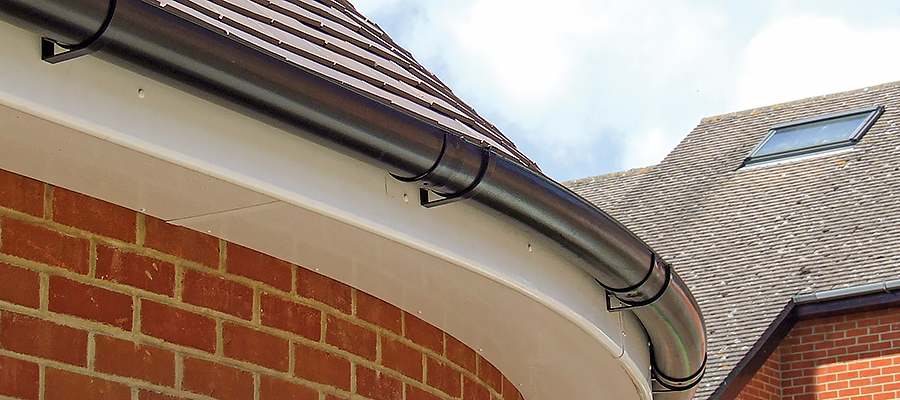

If your project requires a more complex curved, radius or radii beaded deepflow gutter – perhaps on a bay window or orangery – we can manufacture a true or facetted curve to your specification, normally in one-metre lengths.
We can manufacture and supply all the required gutter brackets to install deep flow guttering including fascia brackets, side or top fix rafter brackets, and mortar brackets / rise and fall brackets.
If your project requires special gutter brackets we can manufacture these to your specification, please ask.
Note: Fascia brackets to be installed at max. 750mm centres.
All our aluminium beaded deep flow gutters are available polyester powder coated in a wide array of colours and finishes including the full range of RAL colours, BS colours, Heritage textured finishes, metallic finishes, and anodised coating.
We can also source special colours and finishes to match your project requirements or we can supply our aluminium gutters in the standard mill finish.
Our aluminium deep flow gutters offer many benefits as they are easy to install, low maintenance, and lightweight yet very robust. Our gutter jointing system is proven over 25 years.
Easy, fast installation: Our deep flow aluminium gutters have an integral butt strap, angle and running outlets and are double spigotted meaning less joints and less waste, resulting in a faster installation time.
Over 90% of the aluminium we use is recycled meaning we offer a sustainable rainwater system for your building project.
