Bespoke aluminium gutters are available in a range of shapes and sizes:
- To find out more, call 01691 663300
A Bespoke Aluminium Guttering System gives an architect or designer the opportunity to have a specifically designed, non-standard gutter with gutter sizes, shapes, dimensions and profiles that can all be altered to suit the individual project requirements. Uniquely designed architectural rainwater gutters provide a high-end aesthetic appearance to grace the eaves of any property type.
Aluminium is the ideal metal for custom made gutters as it is very adaptable. Aluminium sheet can be pressed, fabricated and welded to form purpose made sectional gutters
Guttercrest will assist our customers with the design and specification of these specialist gutters, ensuring adequate support brackets, flow rates and a profile of gutter with inherent strength and performance. Our early involvement with the gutter design should help ensure correct interface with other trades.

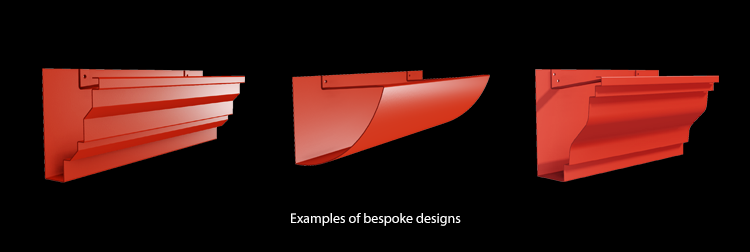

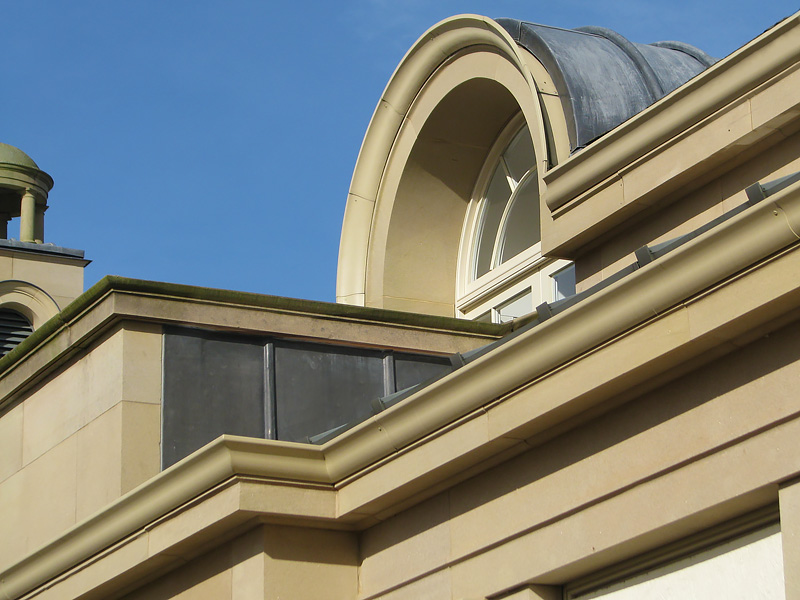

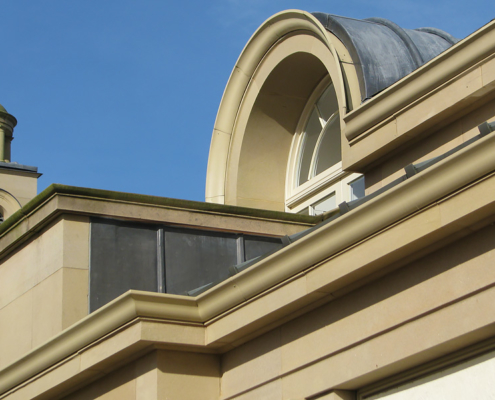

We can design a range of profiles for bespoke gutters from special or extra-large ogee, box, quadrant, cornice, fascia, and concealed to a purpose made gutter section.

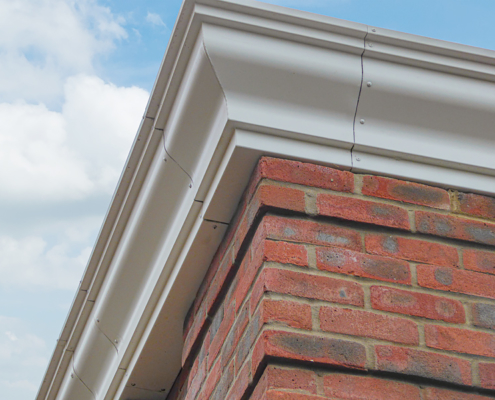

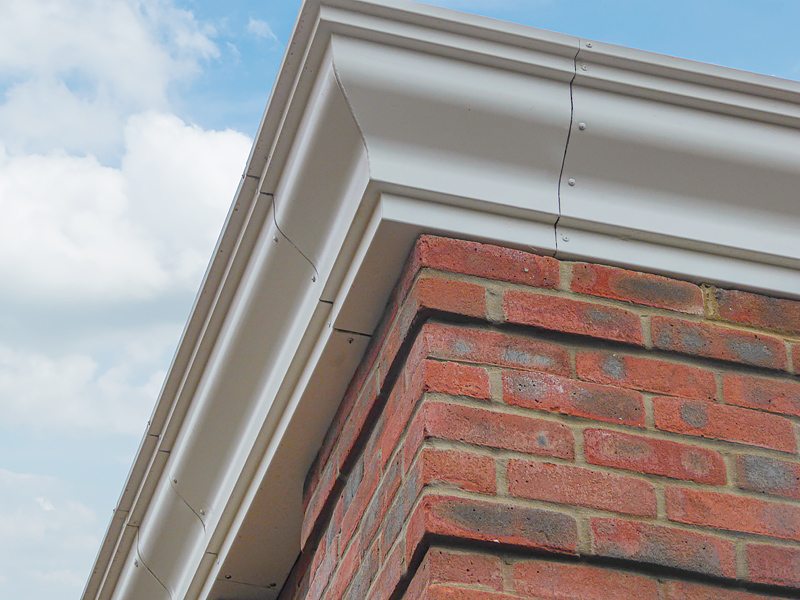

Bespoke aluminium guttering is often combined with a fascia, soffit or both. This can be as an integral concealed gutter with a wraparound fascia and soffit, or an external eaves gutter.
Cast gutters can be produced to replicate and match the existing traditional cast iron gutters on historic, period and restoration projects. Non-standard special profile cast aluminium gutters can be manufactured to any design, whether for a new or refurbishment project, and are suitable for commercial, industrial, public buildings and residential houses.
Guttercrest are synonymous with, and have extensive experience in, the design, manufacture and installation of aluminium bespoke gutters, from simple to complex roof and building structures.
For more information on how we can help you with the design and manufacture of bespoke guttering please contact our Technical Department on 01691 66 33 00.
Please Note: Due to our ongoing product development policy, we reserve the right to alter specifications without prior notice.
We supply a comprehensive range of gutter fittings including stop ends, running outlets, gutter angles, non-standard and irregular angles, raked angles, apex angles, and high capacity internal angles.
We can also manufacture special gutter gutter fittings to your project requirements.

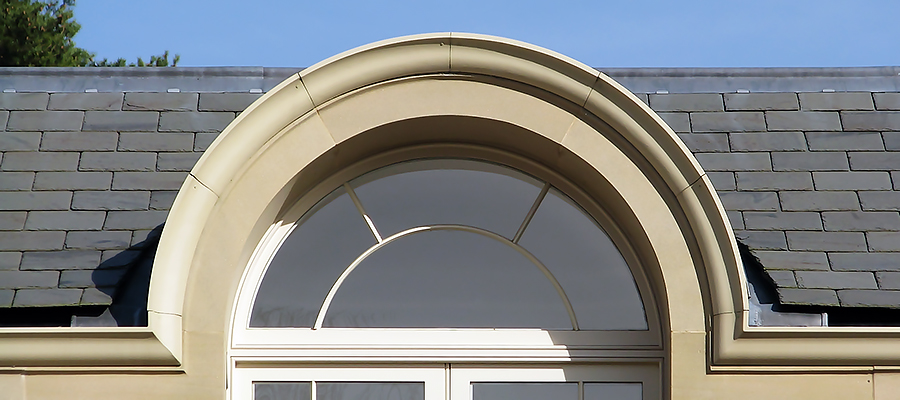

If your project requires a curved, radius or radii bullnose gutter, either to a true or facetted curve, we can manufacture this for you, normally in one-metre lengths.
We can manufacture and supply all the required gutter brackets to install bespoke guttering, including fascia brackets, side or top fix rafter brackets, and mortar brackets / rise and fall brackets.
If your project requires special gutter brackets, we can manufacture these to your specification, please ask.
Note: Fascia brackets to be installed at max. 750mm centres.
All our aluminium bespoke gutters are available polyester powder coated in a wide array of colours and finishes including the full range of RAL colours, BS colours, Heritage textured finishes, metallic finishes, and anodised coating.
We can also source special colours and finishes to match your project requirements or we can supply our aluminium gutters in the standard mill finish.
Our aluminium bespoke gutters offer many benefits as they are easy to install, low maintenance, lightweight yet very robust. Our gutter jointing system is proven over 25 years.
Easy, fast installation: Our bespoke aluminium gutters have integral welded spigots / butt straps and are double spigotted meaning less joints and less waste of gutter lengths, resulting in faster and easier installations.
Over 90% of the aluminium we use is recycled meaning we offer a sustainable rainwater system for your building project.
Bespoke aluminium gutters are available in a range of shapes and sizes:
